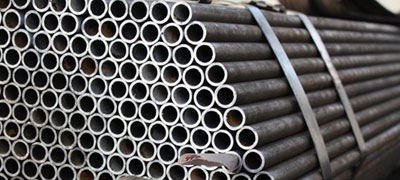

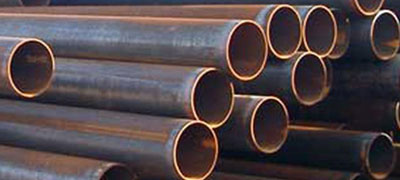

ASTM A213 T5 Alloy Steel Seamless Tubes
Alloy Steel ASTM A213 UNS K4154 Seamless Tubes, ASTM A213 Grade T5 AS Seamless Tubes Supplier in India.
As an acclaimed enterprise of the industry, Reliable Pipes & Tubes is involved in offering a vast array of ASTM A213 T5 Alloy Seamless Tubes as a manufacturer, exporter, stockiest and supplier to our domestic and global clients. These ASTM A213 T5 Alloy Steel Tubes are extensively recommended by clients owing to its optimum strength and longer functional life.
Alloy Steel T5 Seamlees Tubing, Alloy Steel Grade T5 Seamless Tubes Dealers, AS Grade T5 High Pressure Seamless Tubing, AS Gr T5 Rectangular Tubes Leading Manufacturers.
 ASTM A213 T5 Alloy Steel Seamless Tubes |
 Alloy Steel Grade T5 Seamless Tubes |
ASTM A3213 T5 Square Tubes Stockholder, A213 T5 Seamless Tubes, T5 Alloy Steel Seamless Tubes Manufacturer, Stockist, Suppliers and Exporter
Owing to its application specific construction, these Alloy Tubes are widely used for proper flow management. With features like Top grade, Sturdy, Flawless fabrication, and more, these can be availed in various thicknesses. With respect to national and international quality of raw materials, we also offer these tubes in customized sizes and thicknesses as per specific demands by our esteemed clients at market leading prices.
ASTM A213 Grade T5 Alloy Steel Seamless Tube Specification
Dimensions : ASTM, ASME and API
Standard : ASTM A 213 / ASME SA 213
Size : 6.35mm o.d to 101.60mm o.d
Range : 1/2” OD up to 5” OD, customs diameters also available
Schedule : SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules, upto 12mm thk
Type : Seamless
End : Plain End, Beveled End, Treaded
Form : Round, Square, Rectangular, Hydraulic Etc
Length : Single Random, Double Random & Required Length, Custom Size – 12 Meter lengths
Alloy Steel Grade T5 Seamless Tubing Chemical Composition
| Element | Alloy Steel T5 |
| C | 0.15 max |
| Cr | 4.00 - 6.00 |
| Mn | 0.30 - 0.60 |
| Mo | 0.45 - 0.65 |
| P | 0.025 |
| S | 0.025 |
| Si | 1.00 - 2.00 |
ASTM A213 T5 Seamless Tubes Mechanical Properties
| Element | Alloy Steel T5 |
| Tensile Strength | 415 min |
| Yield Strength | 205 min |
| Hardness, HB | 179 max |
| Elongation % | 30 min |
A213 Gr T5 Alloy Steel Seamless Tubes Tolerance
| Outside Diameter | OD Tolerance | WT Tolerance | Ovality Tolerance | Cut Length Tolerance |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15 % | – | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10 % | max, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10 % | max, 2, 41 mm | + 4, 76 mm, – 0 mm |
