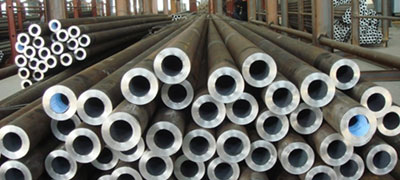

ASTM A213 T22 Alloy Steel Seamless Tubes
Alloy Steel ASTM A213 UNS K21590 Seamless Tubes, AS ASTM A213 T22 Seamlees Tubing Supplier in India.
As an acclaimed enterprise of the industry, Reliable Pipes & Tubes is involved in offering a vast array of ASTM A213 T22 Alloy Seamless Tubes as a manufacturer, exporter, stockiest and supplier to our domestic and global clients. We are known to offer the ASTM A213 T22 Alloy Tubes to our client. This range has a wide demand for heat transfer process equipment such as boilers, condensers, super heaters and heat exchangers.
A213 T22 Seamless Tubes, ASTM A213 Grade T22 AS Seamless Tubes Stockholder, Alloy Steel Grade T22 Seamless Tubes Dealers, ASTM A3213 T22 Square Tubes Leading Manufacturers.
 ASTM A213 T22 Alloy Steel Seamless Tubes |
 Alloy Steel Grade T22 Seamless Tubes |
AS Grade T22 High Pressure Seamless Tubing, T22 Alloy Steel Seamless Tubes, AS Gr T22 Rectangular Tubes Manufacturer, Stockist, Suppliers and Exporter
Available in varied sizes and dimensions, our range is used in process instrumentation and general engineering. With respect to national and international quality of raw materials, we also offer these tubes in customized sizes and thicknesses as per specific demands by our esteemed clients at market leading prices.
ASTM A213 Grade T22 Alloy Steel Seamless Tube Specification
Dimensions : ASTM, ASME and API
Standard : ASTM A 213 / ASME SA 213
Size : 6.35mm o.d to 101.60mm o.d
Range : 1/2” OD up to 5” OD, customs diameters also available
Schedule : SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules, upto 12mm thk
Type : Seamless
End : Plain End, Beveled End, Treaded
Form : Round, Square, Rectangular, Hydraulic Etc
Length : Single Random, Double Random & Required Length, Custom Size – 12 Meter lengths
Alloy Steel Grade T22 Seamless Tubing Chemical Composition
| Element | Alloy Steel T22 |
| C | 0.05 - 0.15 |
| Cr | 1.90 - 2.60 |
| Mn | 0.30 - 0.60 |
| Mo | 0.80 - 1.13 |
| P | 0.025 |
| S | 0.025 |
| Si | 0.50 - 1.00 |
ASTM A213 T22 Seamless Tubes Mechanical Properties
| Element | Alloy Steel T22 |
| Tensile Strength | 415 min |
| Yield Strength | 205 min |
| Hardness, HB | 163 max |
| Elongation % | 30 min |
A213 Gr T22 Alloy Steel Seamless Tubes Tolerance
| Outside Diameter | OD Tolerance | WT Tolerance | Ovality Tolerance | Cut Length Tolerance |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15 % | – | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10 % | max, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10 % | max, 2, 41 mm | + 4, 76 mm, – 0 mm |
